In industrial insulation and refractory systems, selecting the right material is pivotal for achieving optimal performance and safety. Calcium silicate board has gained recognition as one of the leading choices for insulation and refractory applications, especially in environments where high temperatures, corrosive elements, and extreme conditions prevail.

It is used in a variety of industries, from power plants to chemical processing units. But why is this material so highly valued? This article explores the unique advantages of calcium silicate boards in industrial settings, focusing on their thermal insulation properties, fire resistance, durability, environmental benefits, and cost-effectiveness.

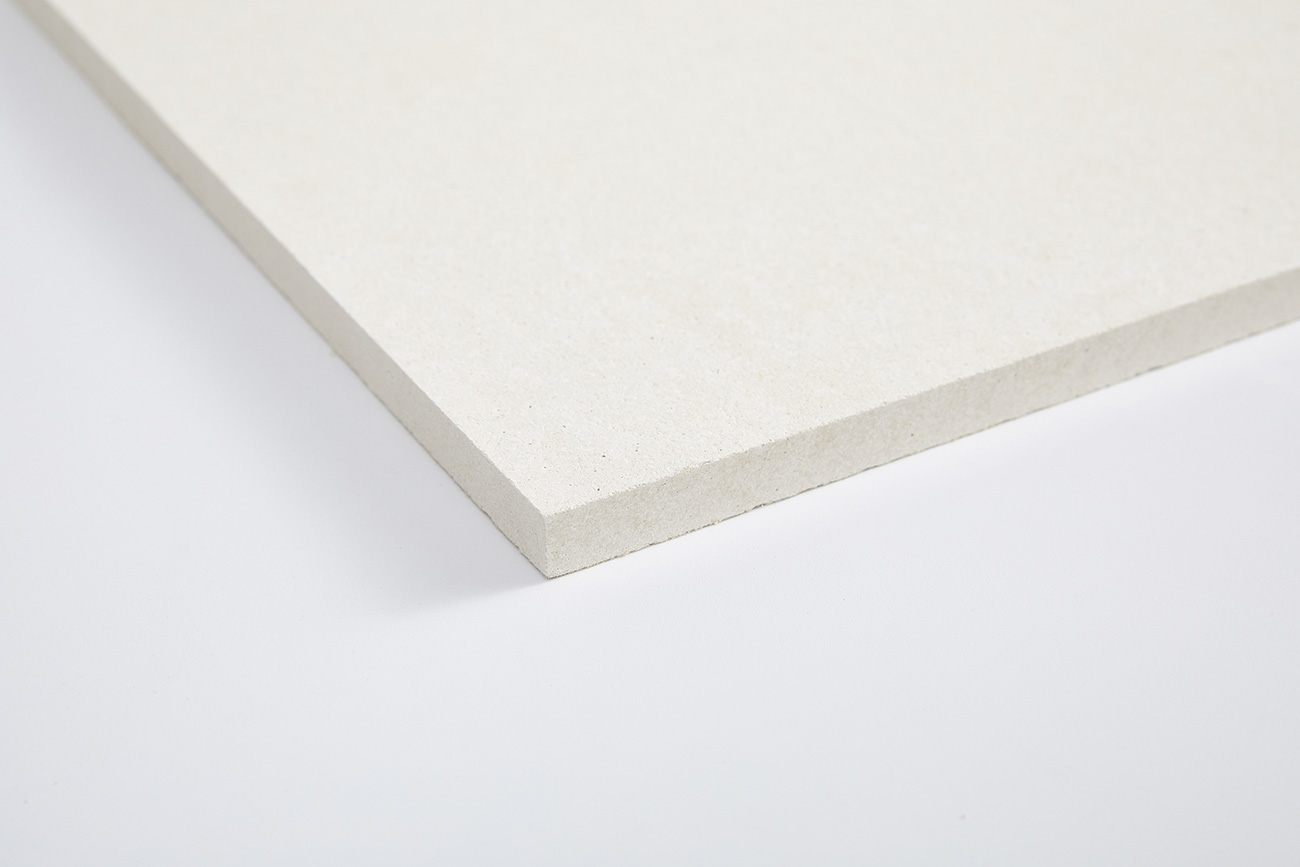

Calcium Silicate Boards For Industrial Applications

1. Overview of Industrial Insulation and Refractory Materials

Industrial insulation and refractory materials protect equipment, personnel, and structures from the damaging effects of high heat, corrosion, and other extreme environmental factors. Insulation materials typically focus on preventing heat loss or gain, thus improving energy efficiency. Refractory materials, on the other hand, are engineered to withstand extremely high temperatures without degrading.

Calcium silicate board, a composite material primarily composed of calcium silicate hydrates, fits perfectly into both categories due to its inherent thermal insulating properties and resistance to fire and thermal shock.

2. Importance of Material Selection for High-temperature Applications

When choosing materials for industrial insulation or refractory purposes, it is crucial to consider the operating temperatures, thermal stability, and resistance to physical stress. Materials must maintain their integrity and performance in fluctuating temperature environments, particularly in high-heat applications such as furnaces, boilers, and kilns. Calcium silicate boards are engineered to perform under such conditions, making them indispensable in industries requiring high-performance thermal insulation and fire resistance.

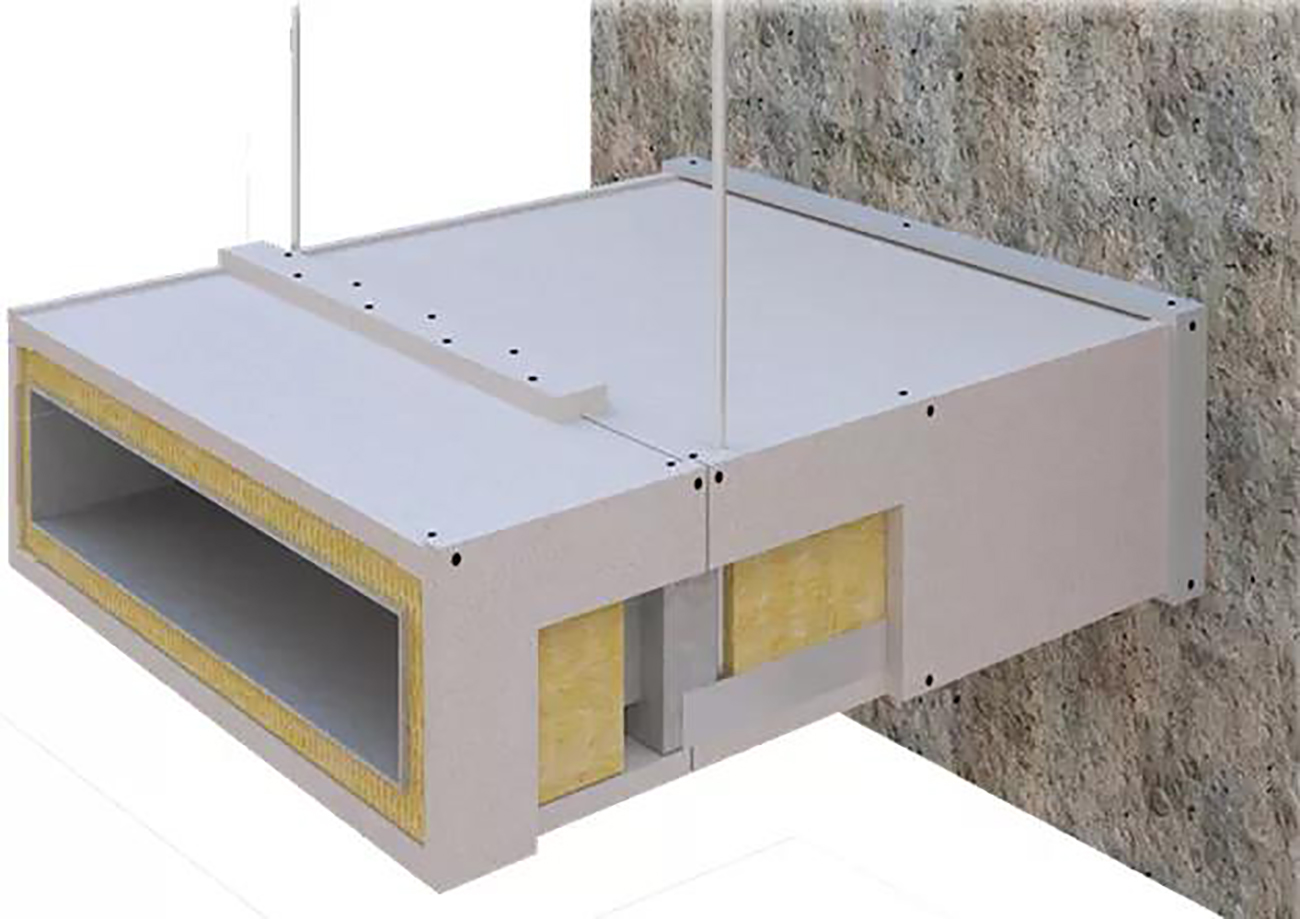

Calcium Silicate Board For Fireproof Ductwork System

3. Unrivaled Thermal Insulation Properties

3.1 Superior Heat Resistance

One of the foremost advantages of calcium silicate board is its exceptional ability to resist heat. It can generally withstand temperatures up to 1100°C (2012°F), making it suitable for environments where conventional insulation materials might fail. This heat resistance stems from its highly stable crystal structure, which allows it to endure extreme thermal stress without degrading or losing its insulating properties.

3.2 Low Thermal Conductivity for Energy Efficiency

Calcium silicate boards exhibit low thermal conductivity, meaning they can effectively prevent heat transfer between areas with significant temperature differences. This property is particularly valuable in energy-intensive industries, where maintaining consistent temperatures is essential for process efficiency. Calcium silicate boards contribute to reduced energy consumption by minimizing heat loss or gain, making industrial operations more sustainable and cost-effective in the long run.

4. Enhanced Fire Resistance and Safety Benefits

4.1 Fireproofing Capabilities for Industrial Applications

Calcium silicate boards are inherently non-combustible, providing superior fire resistance in applications where fire safety is paramount. This makes them ideal for use in high-risk environments such as power plants, chemical factories, and steel production facilities. The material's ability to withstand direct exposure to flames and high temperatures helps contain fire hazards, ensuring critical equipment and personnel remain safe. Additionally, calcium silicate boards can maintain their structural integrity even in a fire, providing essential protection against heat and smoke infiltration.

4.2 Contribution to Workplace Safety and Compliance

In many industrial sectors, fire safety regulations are strict, demanding materials that can offer reliable protection. Calcium silicate boards not only meet but often exceed these requirements. Their fire-resistant qualities are recognized by international standards, such as ASTM E136, which certifies their non-combustibility. By incorporating calcium silicate boards into insulation and refractory systems, industries can achieve compliance with safety standards, reduce the risk of workplace accidents, and foster a safer environment for employees.

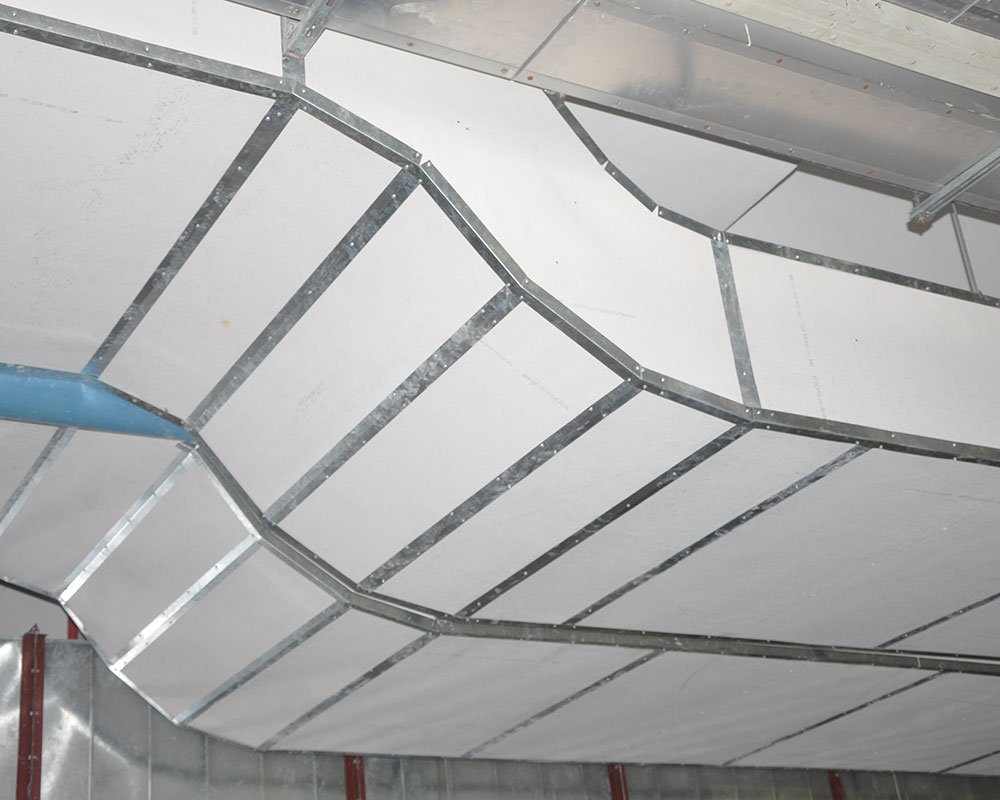

Fire-Rated Calcium Silicate Board

5. Environmental and Sustainability Advantages

5.1 Eco-friendly Composition and Manufacturing Process

Calcium silicate boards are produced from a mix of natural materials, including calcium, silica, and water, making them an environmentally friendly option compared to synthetic alternatives. The production process generates lower carbon emissions and requires less energy, reducing the environmental footprint of industrial operations. Besides, the material is non-toxic and does not release harmful substances when exposed to high temperatures.

5.2 Contribution to Green Building Practices

As industries shift towards more sustainable practices, the demand for eco-friendly materials has increased. Calcium silicate boards align with green building initiatives due to their recyclability and low environmental impact. Their use in insulation and refractory systems contributes to the overall energy efficiency of industrial facilities, further reducing their carbon footprint and aiding in compliance with modern sustainability standards.

6. Cost-effectiveness and Performance Balance

6.1 Long-term Economic Benefits

Although the initial cost of calcium silicate boards may be higher than some other insulation materials, their durability, low maintenance requirements, and energy efficiency lead to significant long-term cost savings. By minimizing heat loss, improving energy efficiency, and reducing the need for frequent replacements, businesses can realize substantial financial benefits over time. Furthermore, their extended lifespan helps amortize the upfront costs, making them a cost-effective choice in the long run.

6.2 Competitive Edge in Industrial Projects

In today's competitive industrial landscape, having access to reliable, high-performance materials is crucial. Calcium silicate boards provide an exceptional blend of heat resistance, fireproofing, and durability, making them a valuable asset for any industrial project. By opting for calcium silicate boards, companies can boost operational efficiency, minimize risks, and establish themselves as leaders in both safety and sustainability, giving them a significant edge over competitors.

7. Protectpan: Fire Protection at Its Best

Protectpan is a fireproof wall board from New Element, which is designed to meet the highest safety standards. Made from a blend of pure quartz, quick lime, Portland cement, cellulose, and mineral additives, Protectpan boasts a fire-resistance rating of up to 1200°C. With this product, businesses can rest assured that their buildings will maintain safety for at least 2 hours of fire exposure.

Calcium Silicate Board – Protectpan

Key benefits of Protectpan include:

• 100% Non-Asbestos: Ensures a safe, eco-friendly application with no harmful materials.
• Low Density: Available in various thicknesses and sizes, lightweight and easy to install without sacrificing performance.
• Low Thermal Conductivity: Provides excellent energy savings by reducing the need for air conditioning or heating systems.

Protectpan is particularly suited for fire-rating applications such as glass curtain walls, building structure protection, indoor partitions, ventilation ducts, smoke ducts, smoke curtains, and tunnel fire protection. Whether in construction or industrial settings, Protectpan guarantees that safety comes first while ensuring cost-efficiency and easy installation.

Conclusion

Calcium silicate boards offer a comprehensive array of advantages that make them indispensable for industrial insulation and refractory systems. Their exceptional properties position them as a top choice for industries across the globe, ideal for enhancing energy efficiency, complying with safety standards, or contributing to green building practices. For more information about top-quality calcium silicate boards, please feel free to contact us at [email protected].
